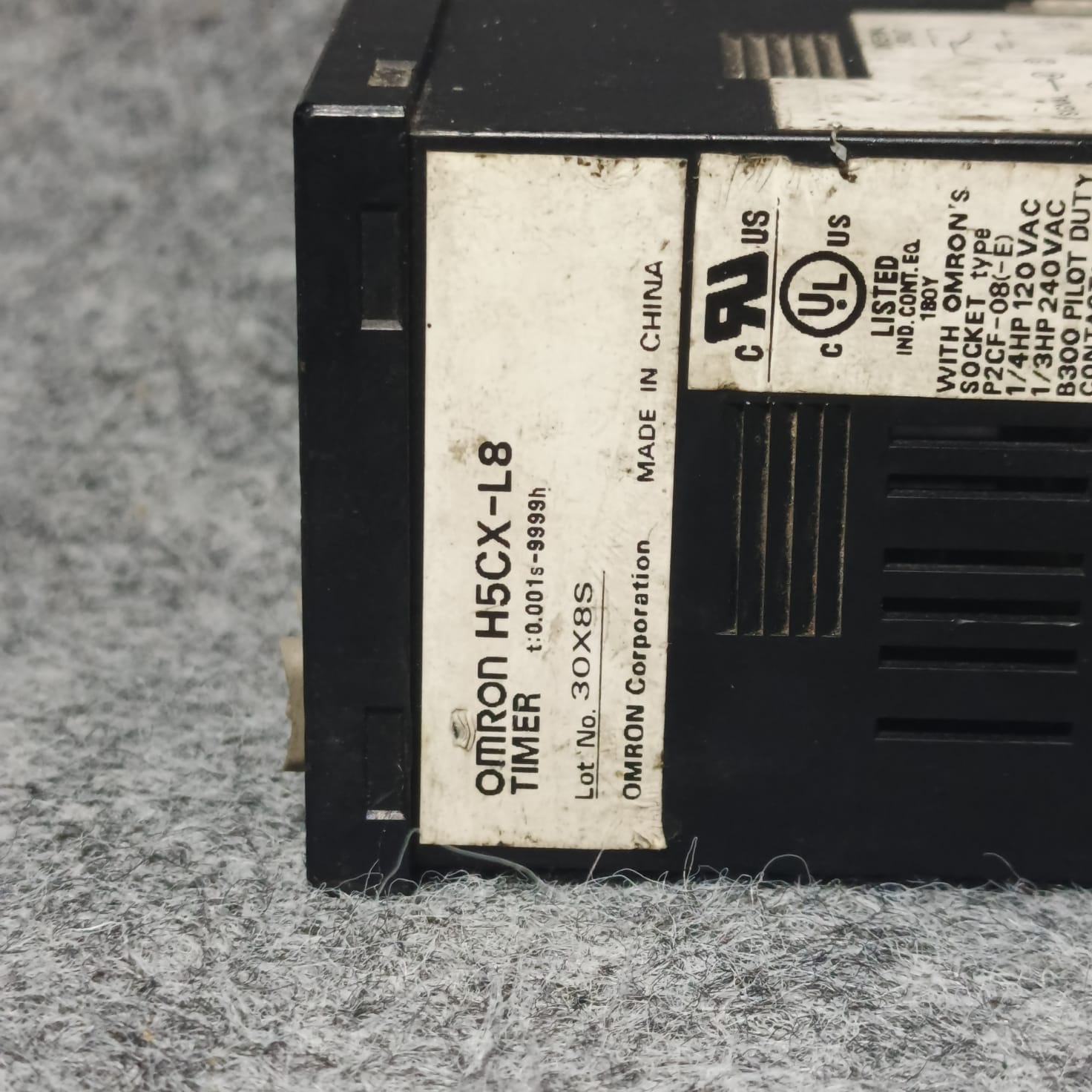

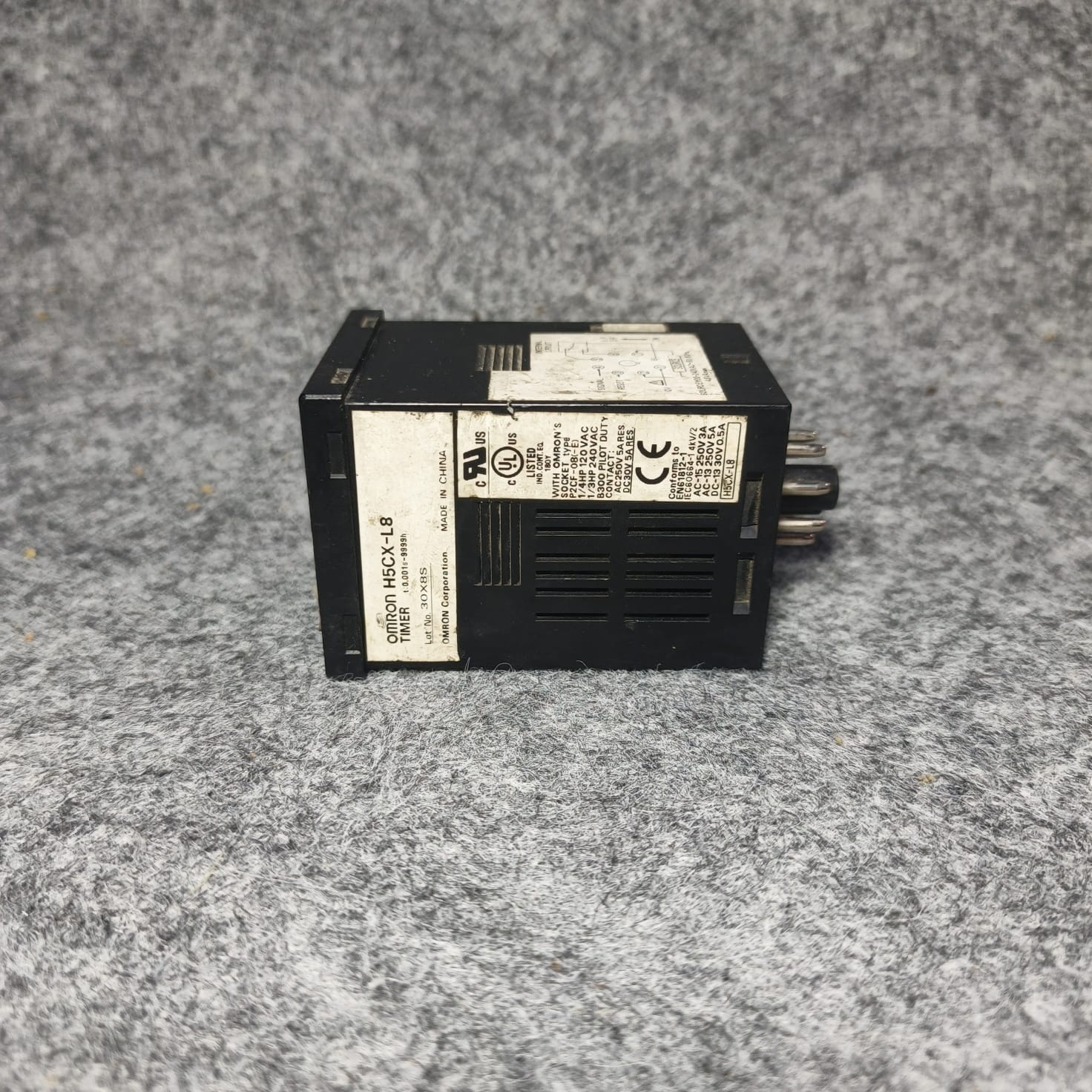

OMRON H5CX-L8 Digital Timer

The OMRON H5CX-L8 Digital Timer is a compact and reliable multifunction digital timer designed for industrial automation and process control applications. Featuring a 48 × 48 mm DIN panel size, an 8-pin socket connection, and multiple timer operating modes, the H5CX-L8 delivers accurate timing control for machinery, production lines, packaging equipment, conveyors, and factory automation systems. Its bright digital display and user-friendly programming make it an excellent choice for both new installations and replacement applications.

Key Features

• Genuine OMRON Digital Timer

• Model: H5CX-L8

• Compact 48 × 48 mm DIN panel design

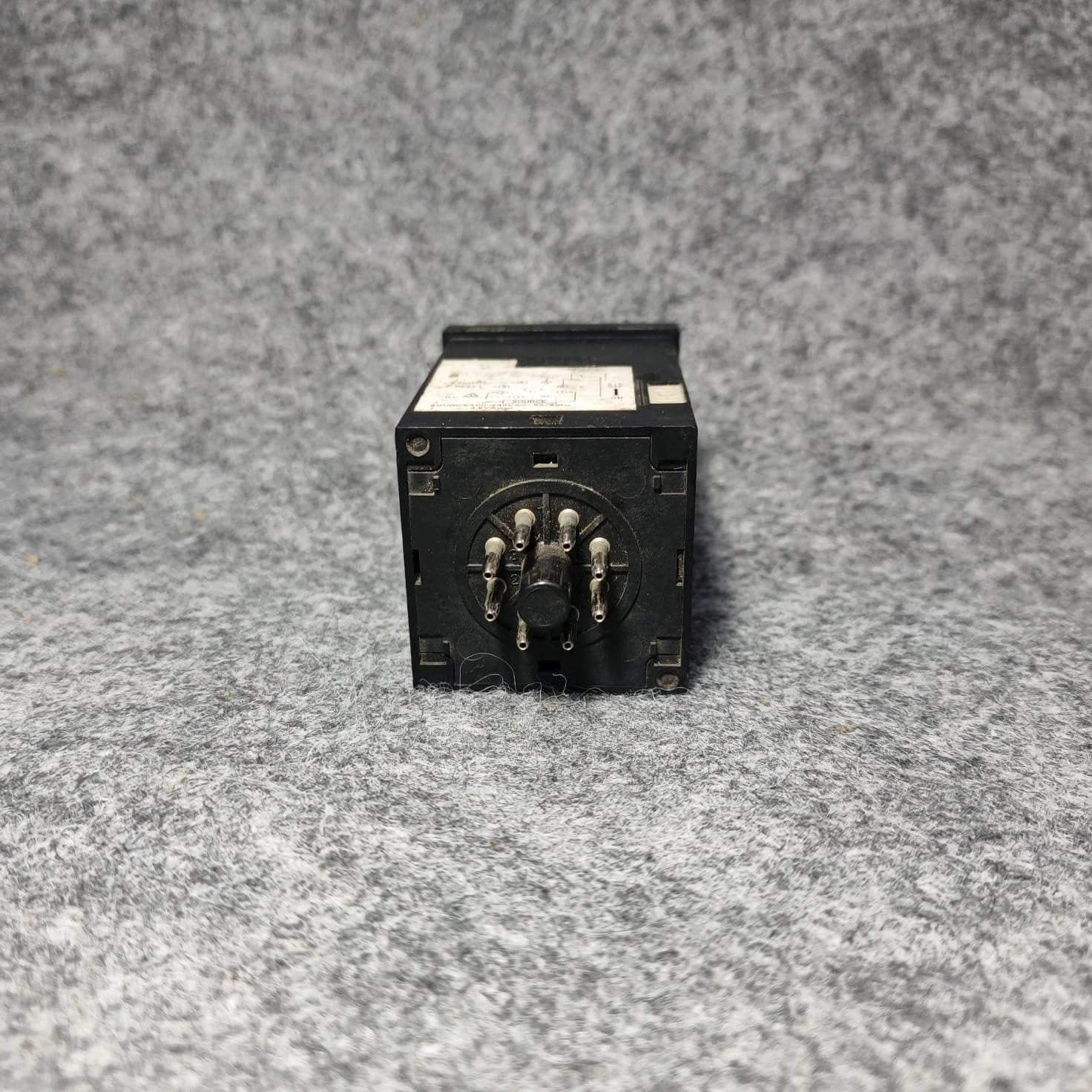

• 8-pin socket mounting for easy installation and replacement

• Multifunction timer with multiple operating modes

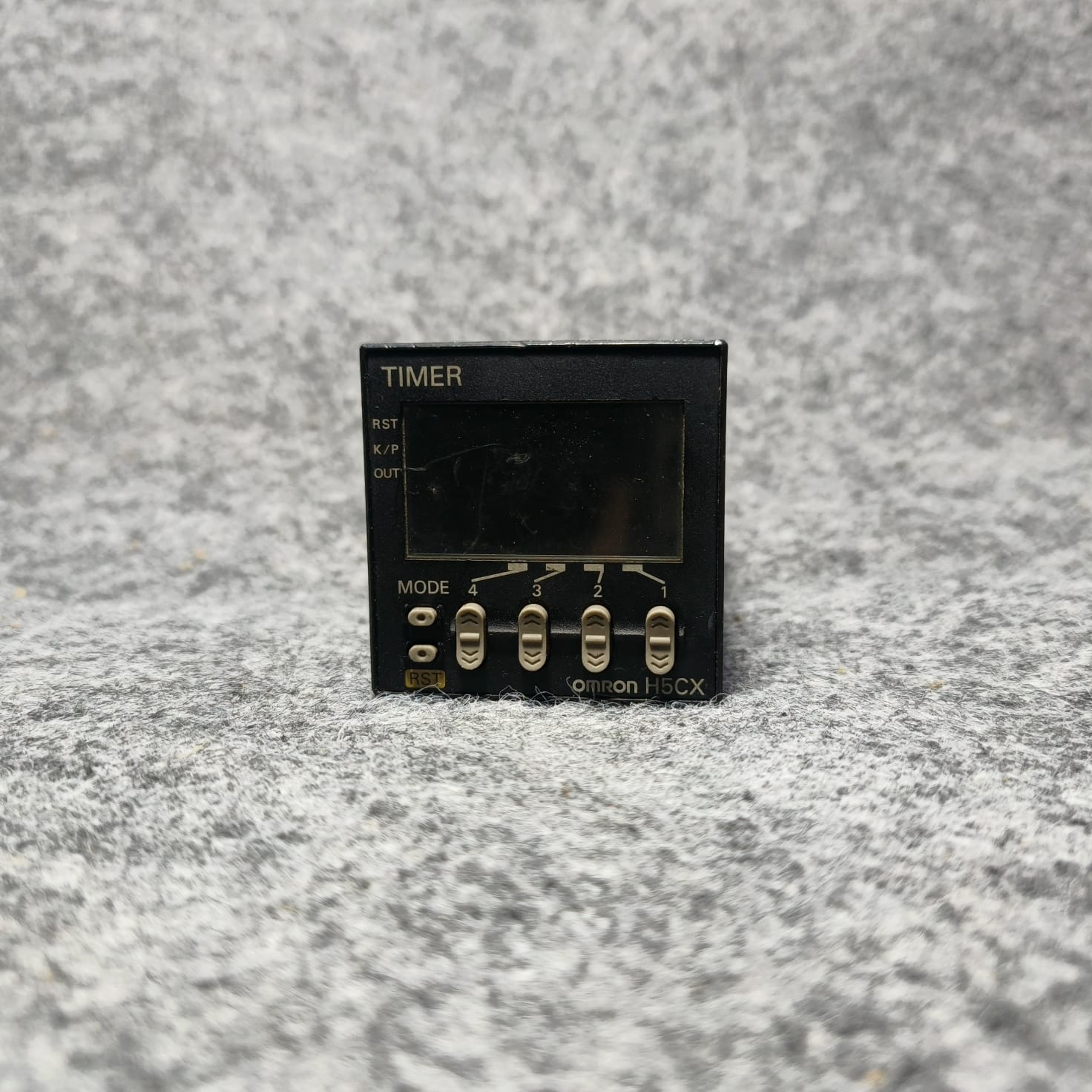

• High-visibility LCD digital display

• Reliable industrial-grade performance

• Ideal for machine maintenance, repair, and retrofit projects

Technical Specifications

• Manufacturer: OMRON

• Model: H5CX-L8

• Product Type: Digital Timer

• Display: 4-digit LCD

• Panel Size: 48 × 48 mm (DIN 1/16)

• Connection: 8-pin socket

• Power Supply: 100–240 VAC or 12–24 VDC / 24 VAC (depending on model variant)

• Output Type: Relay contact or transistor (depends on model variant)

• Time Range: 0.001 seconds up to 9,999 hours (selectable ranges)

• Protection Rating: IP66 (front panel with waterproof gasket installed)

• Mounting: Panel Mount

Applications

• Industrial Automation

• Packaging Machines

• Conveyor Systems

• Food Processing Equipment

• Textile Machinery

• Assembly Lines

• Pump and Motor Control

• Process Control Systems

• Factory Automation
