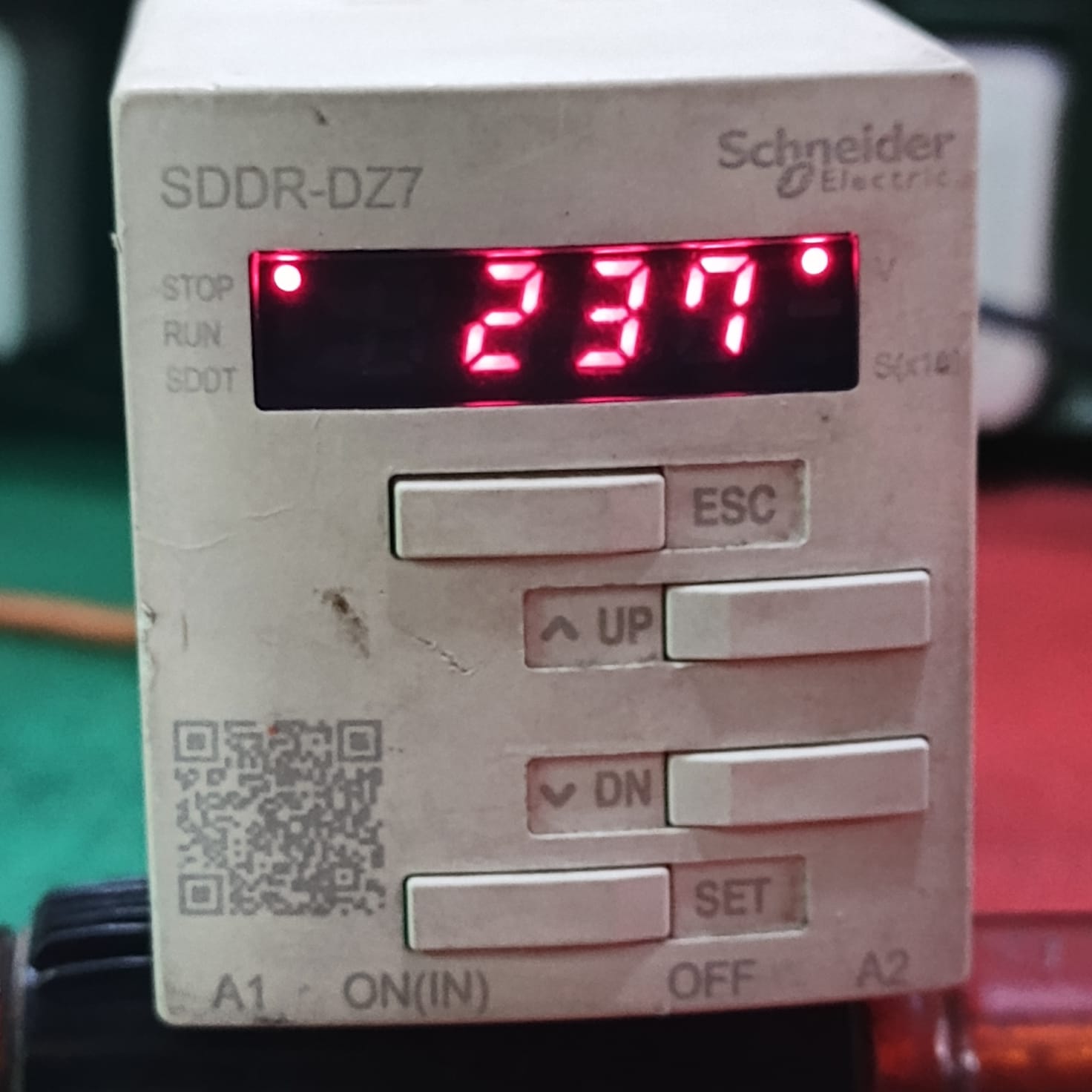

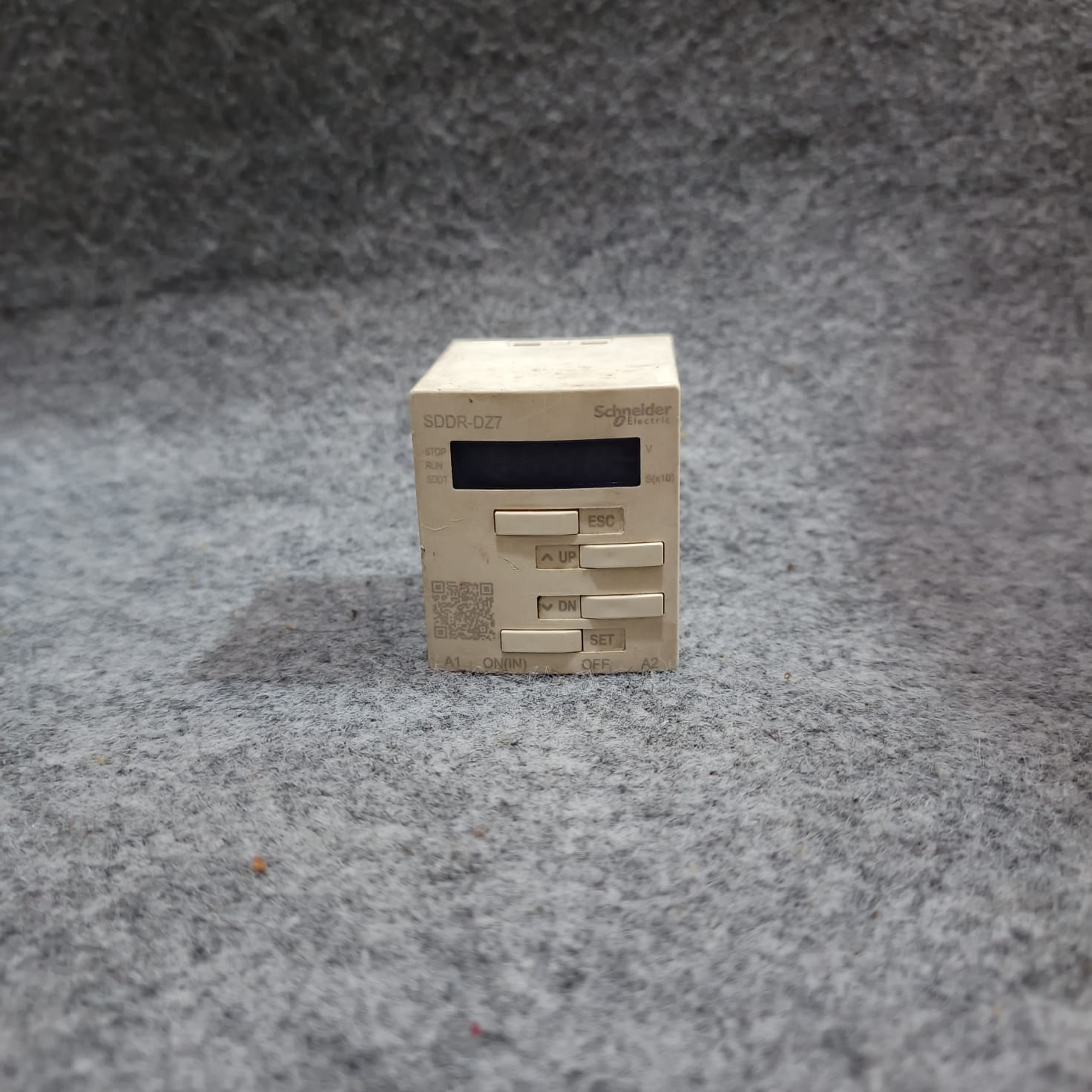

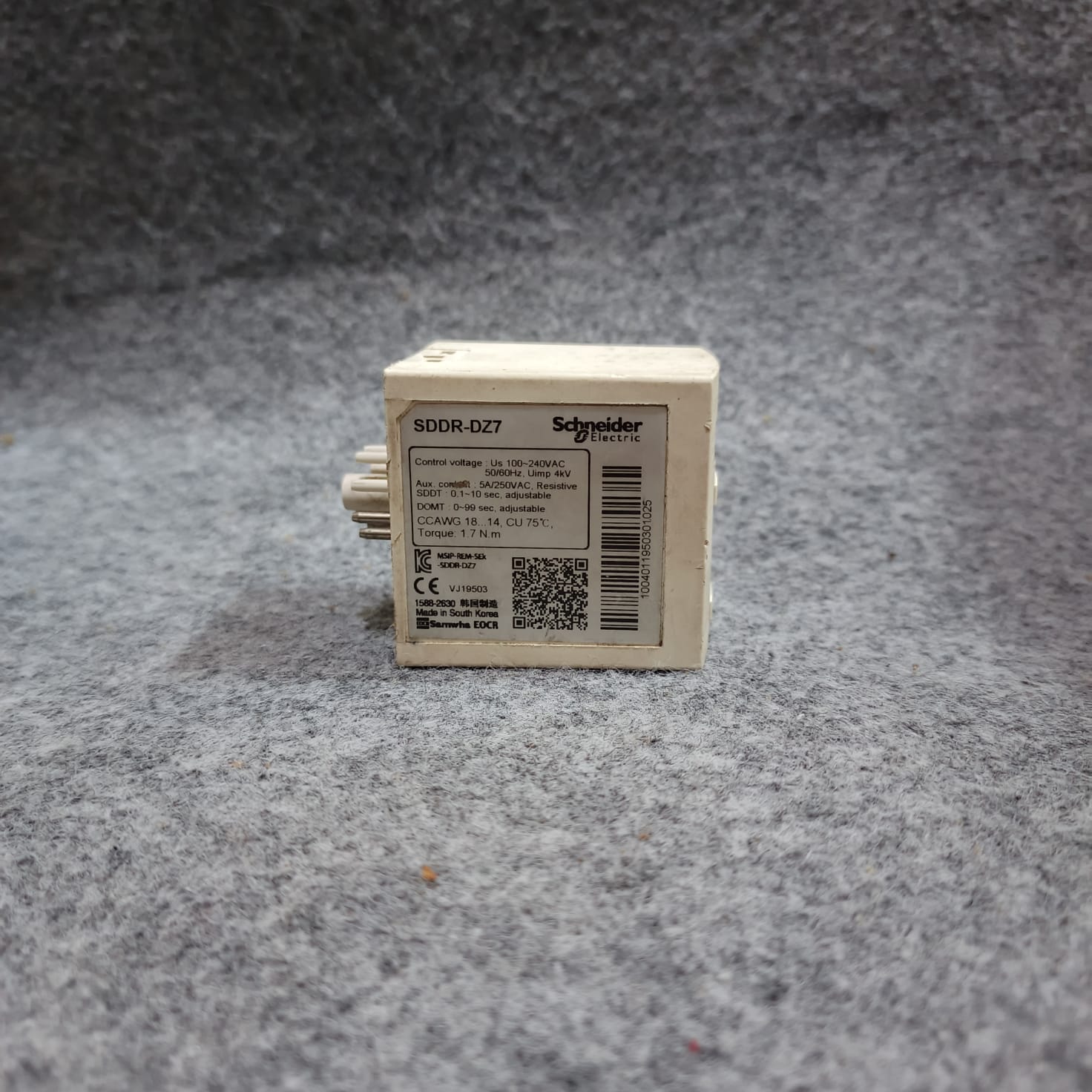

SCHNEIDER SDDR-DZ7 Shutdown Auto Restart Relay

The Schneider Electric SDDR-DZ7 Shutdown Auto Restart Relay is an industrial protection and control relay designed to monitor power conditions and automatically restart equipment after temporary power interruptions or voltage drops. It is commonly used in motor control systems to prevent downtime caused by short “voltage dips” (brownouts) and to ensure smooth automatic recovery of industrial machines after shutdown conditions.

This device is widely applied in factories where continuous operation is critical, such as production lines, pumps, conveyors, compressors, and automated machinery systems.

Key Features

• Genuine Schneider Electric protection relay

• Model: SDDR-DZ7

• Automatic restart after shutdown or voltage dip

• Improves machine uptime and reduces production loss

• Stable industrial-grade electronic design

• Suitable for motor and machine control systems

• LED status indicators for operating condition monitoring

• Compact design for panel installation

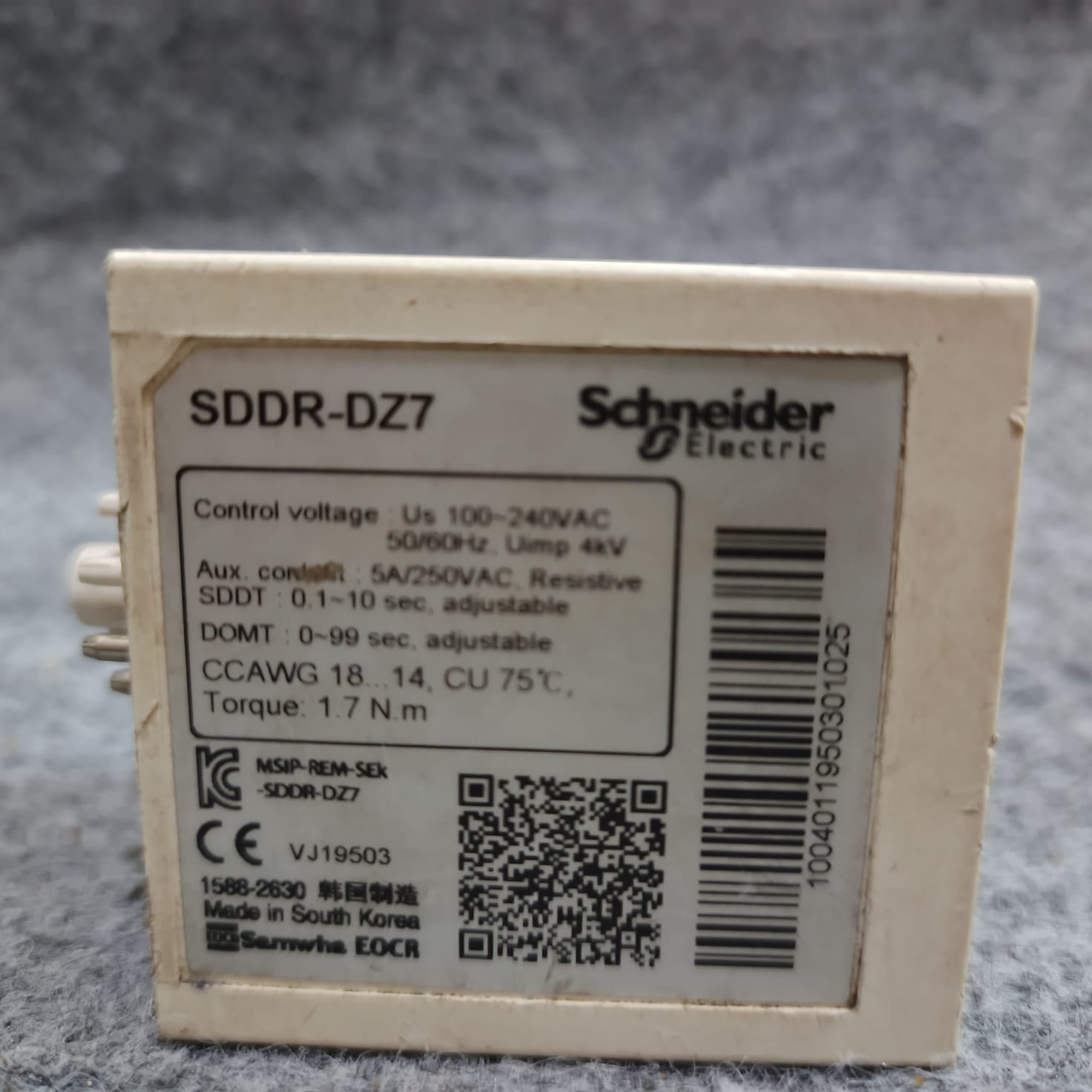

Technical Specifications

• Manufacturer: Schneider Electric

• Model: SDDR-DZ7

• Product Type: Shutdown / Auto Restart Relay

• Operating Voltage: Typically 100–240 VAC (varies by version)

• Function: Detects voltage failure and triggers automatic restart logic

• Response Time: Fast detection of voltage fluctuations (industrial-grade protection behavior)

• Mounting: Panel / DIN rail (depending on installation base)

• Application Class: Motor protection / control automation relay

Applications

• Industrial Motor Control Systems

• Pumps and Water Systems

• Conveyor Systems

• Air Compressors

• Factory Production Lines

• Textile Machinery

• Automation Control Panels

• Process Control Systems
