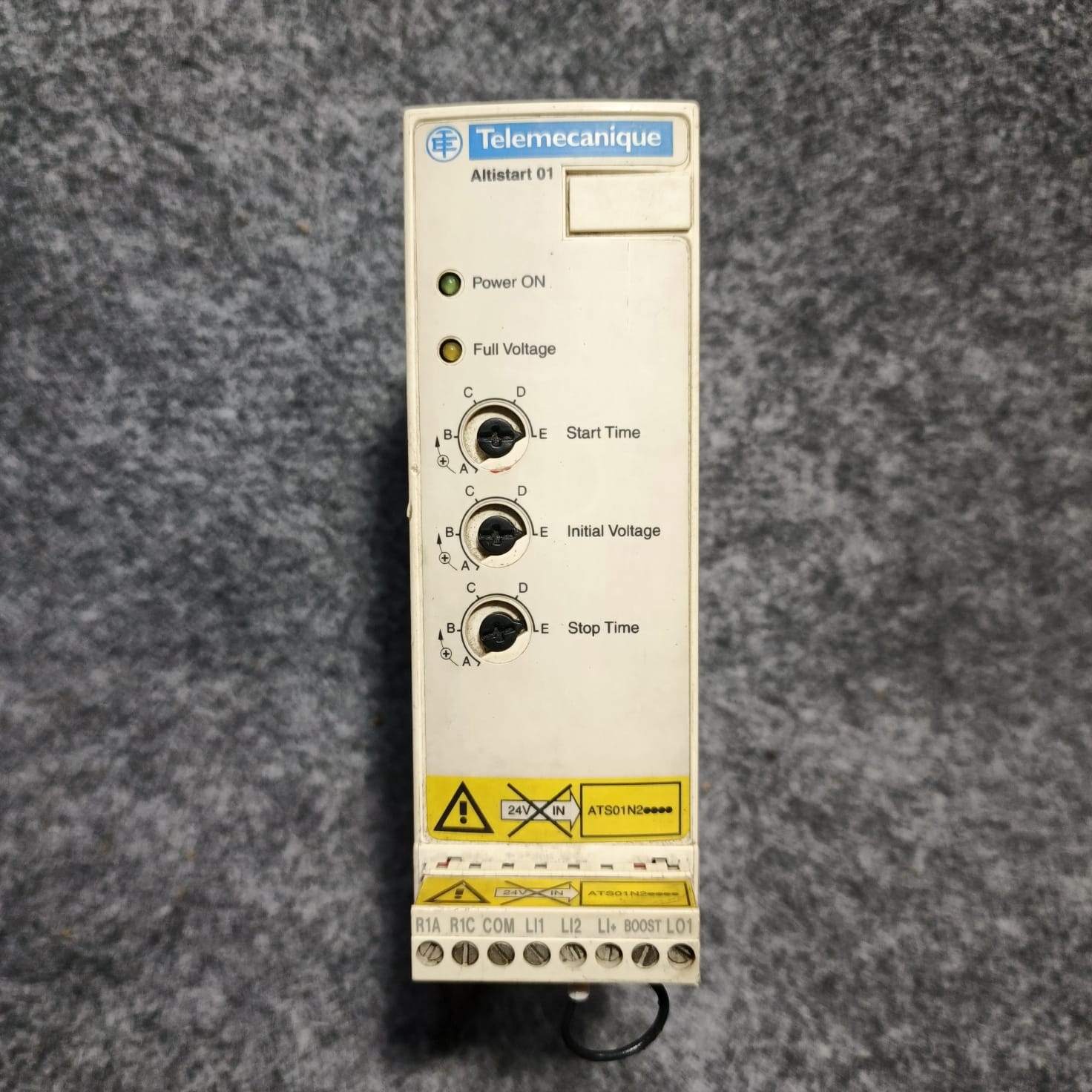

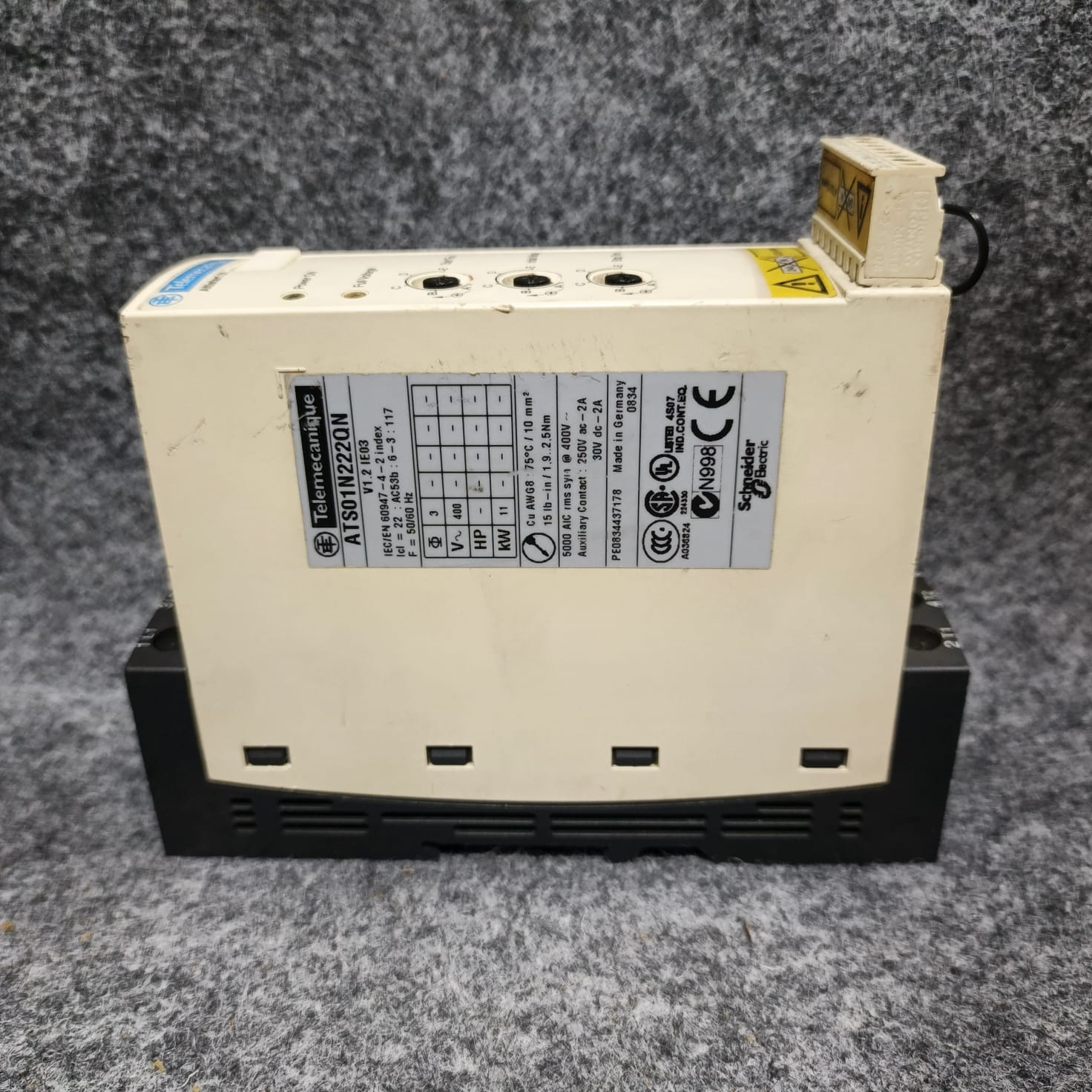

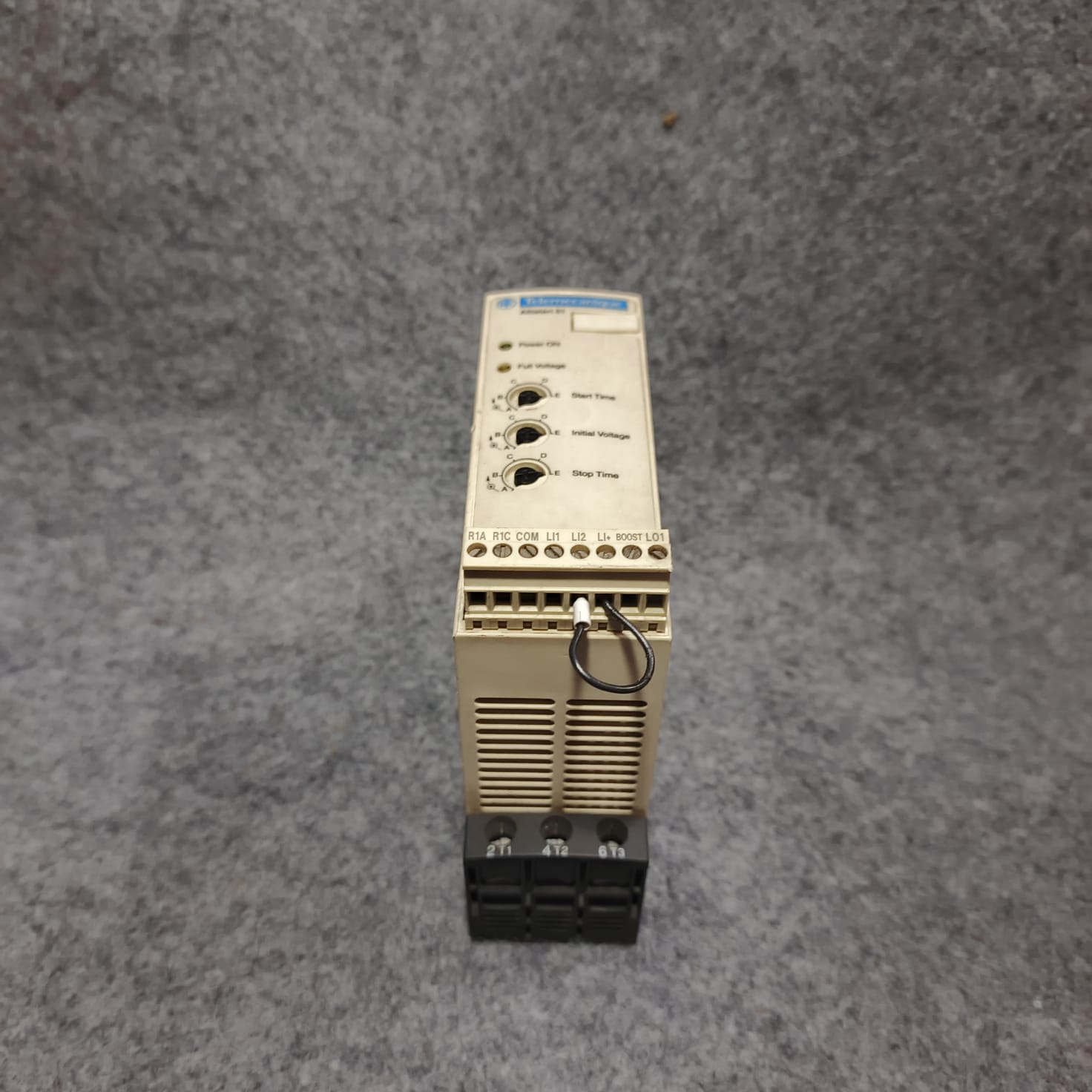

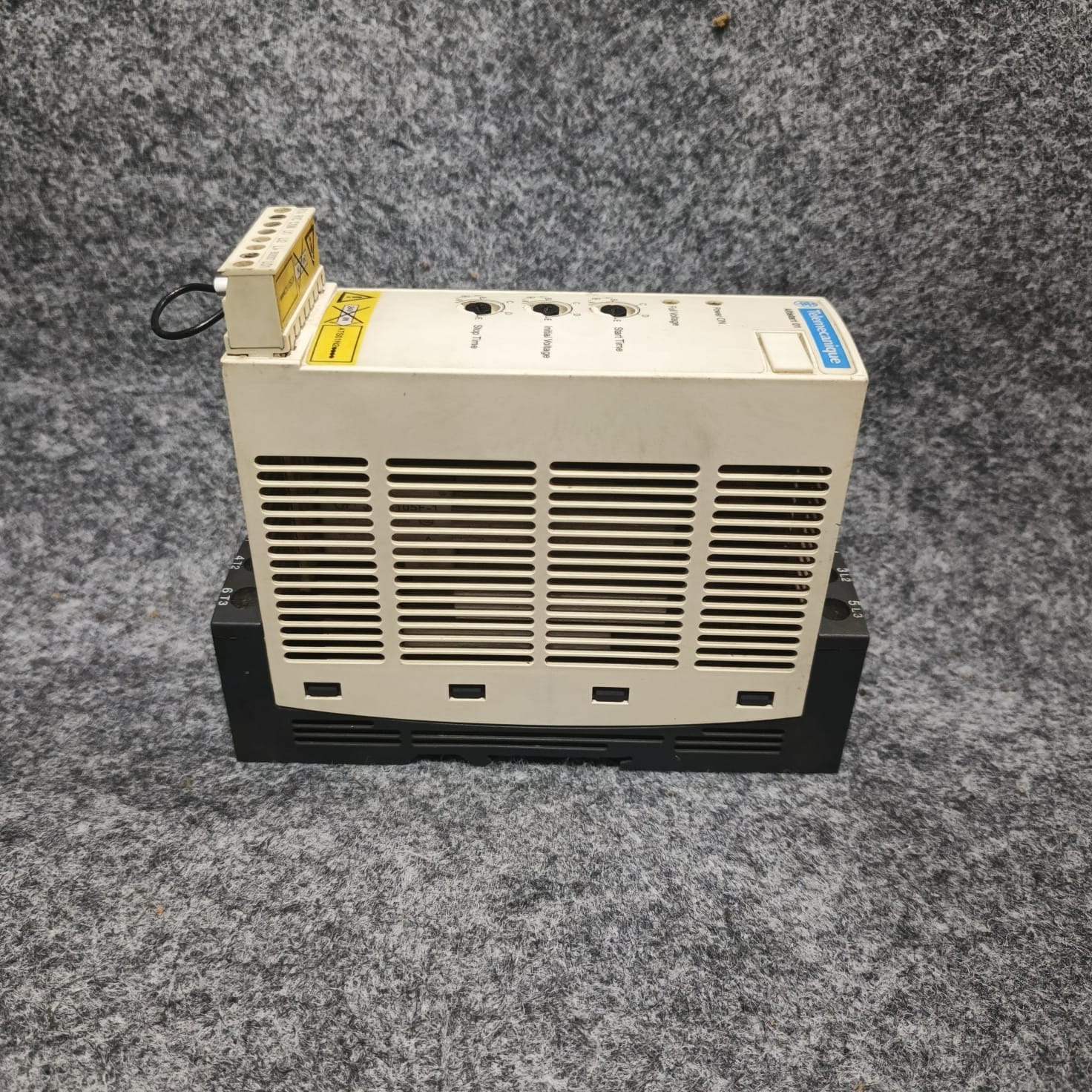

SCHNEIDER TELEMECANIQUE ALTISTART 01 ATS01N222QN Soft Starter

22A | 380–415V AC | 7.5–11kW | 3-Phase Motor Soft Starter

The Schneider Telemecanique Altistart 01 ATS01N222QN is a compact, high-performance soft starter designed for 3-phase asynchronous motors. It provides smooth motor acceleration and deceleration by gradually ramping up the supply voltage, reducing mechanical stress, minimizing inrush current, and extending the service life of motors and connected equipment. With an integrated bypass and compact DIN rail/panel-mount design, it is an excellent solution for industrial automation, pumps, fans, conveyors, compressors, and packaging machinery.

Key Features

• Genuine Schneider Electric / Telemecanique Soft Starter

• Model: ATS01N222QN

• Altistart 01 Series

• Rated Current: 22A

• Supply Voltage: 380–415 VAC, 3-Phase

• Motor Power: 7.5–11 kW

• Smooth voltage ramp starting to reduce mechanical and electrical stress

• Adjustable start and stop ramp time

• Integrated bypass for improved efficiency

• Compact design for easy panel installation

• Reliable operation in demanding industrial environments

Technical Specifications

• Manufacturer: Schneider Electric (Telemecanique)

• Model: ATS01N222QN

• Series: Altistart 01

• Product Type: Soft Starter

• Motor Type: 3-Phase Asynchronous Motor

• Rated Current: 22 A

• Rated Supply Voltage: 380–415 VAC (±10%)

• Motor Power Rating: 7.5 kW to 11 kW

• Frequency: 50/60 Hz

• Starting Method: Voltage Ramp

• Starting/Stopping Time: Adjustable from 1 to 10 seconds

• Protection Rating: IP20

• Mounting: Panel / DIN Rail

• Integrated Bypass: Yes

Applications

• Industrial Motors

• Conveyor Systems

• Pumps

• Fans and Blowers

• Compressors

• Packaging Machines

• Material Handling Equipment

• Textile Machinery

• Food Processing Equipment

• General Industrial Automation
