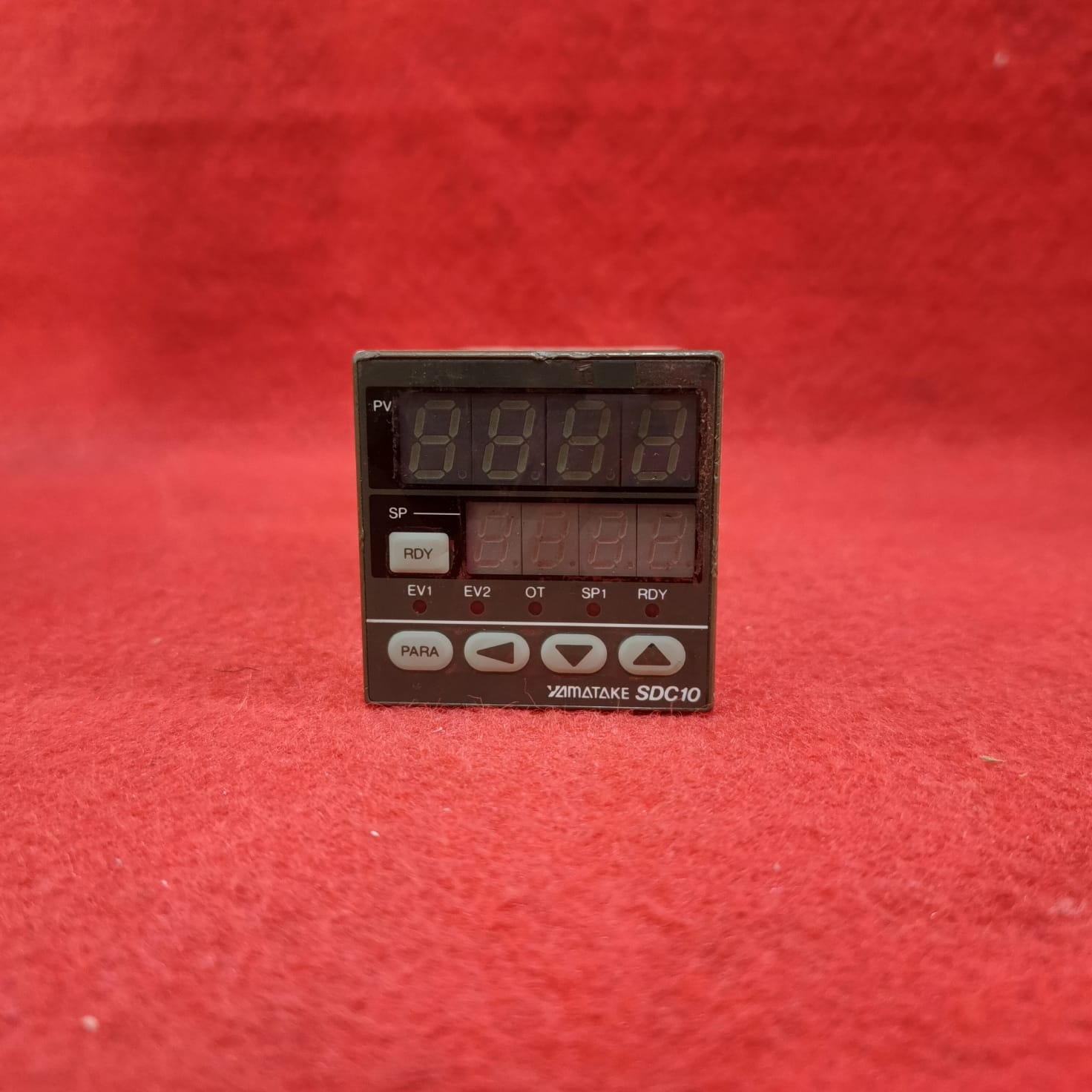

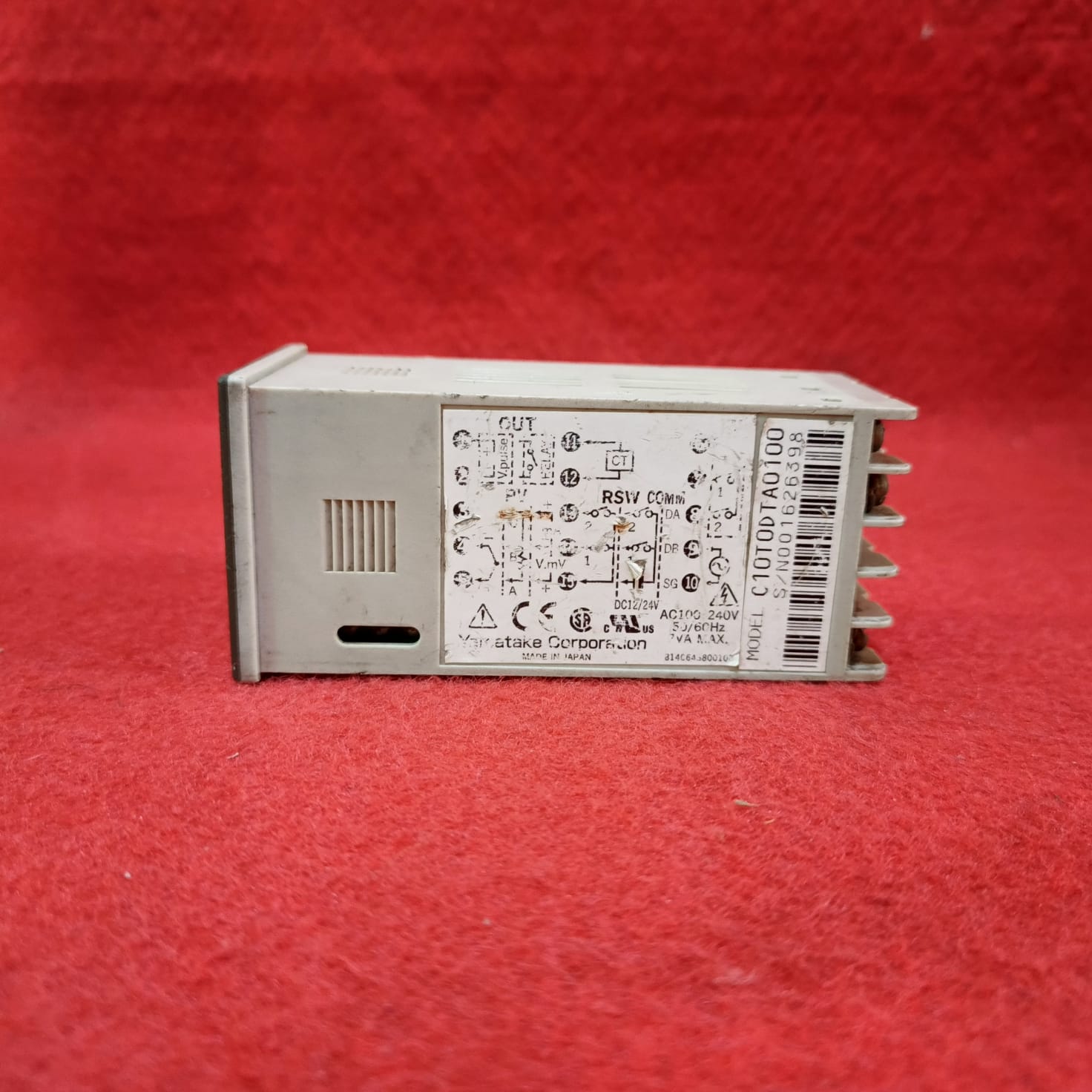

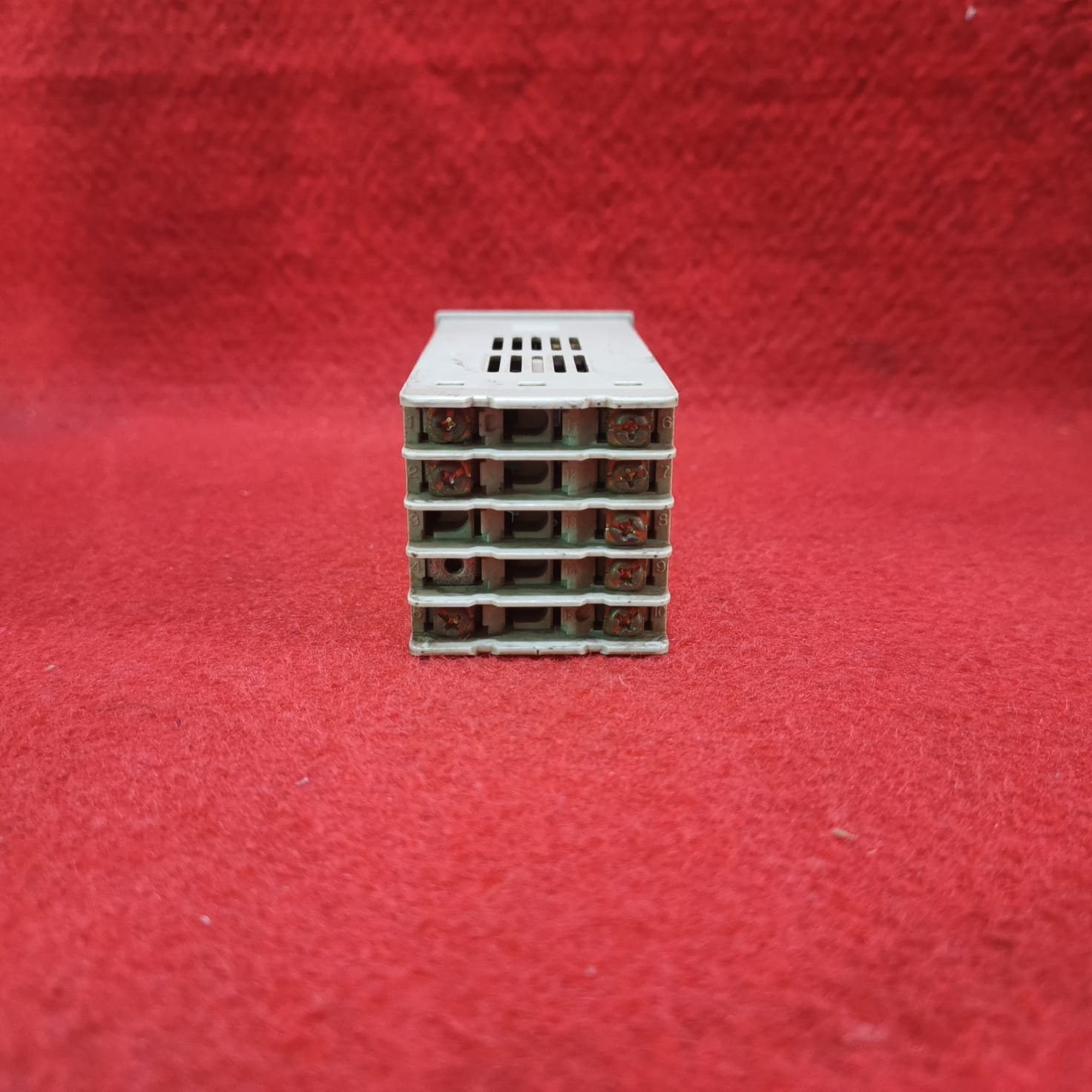

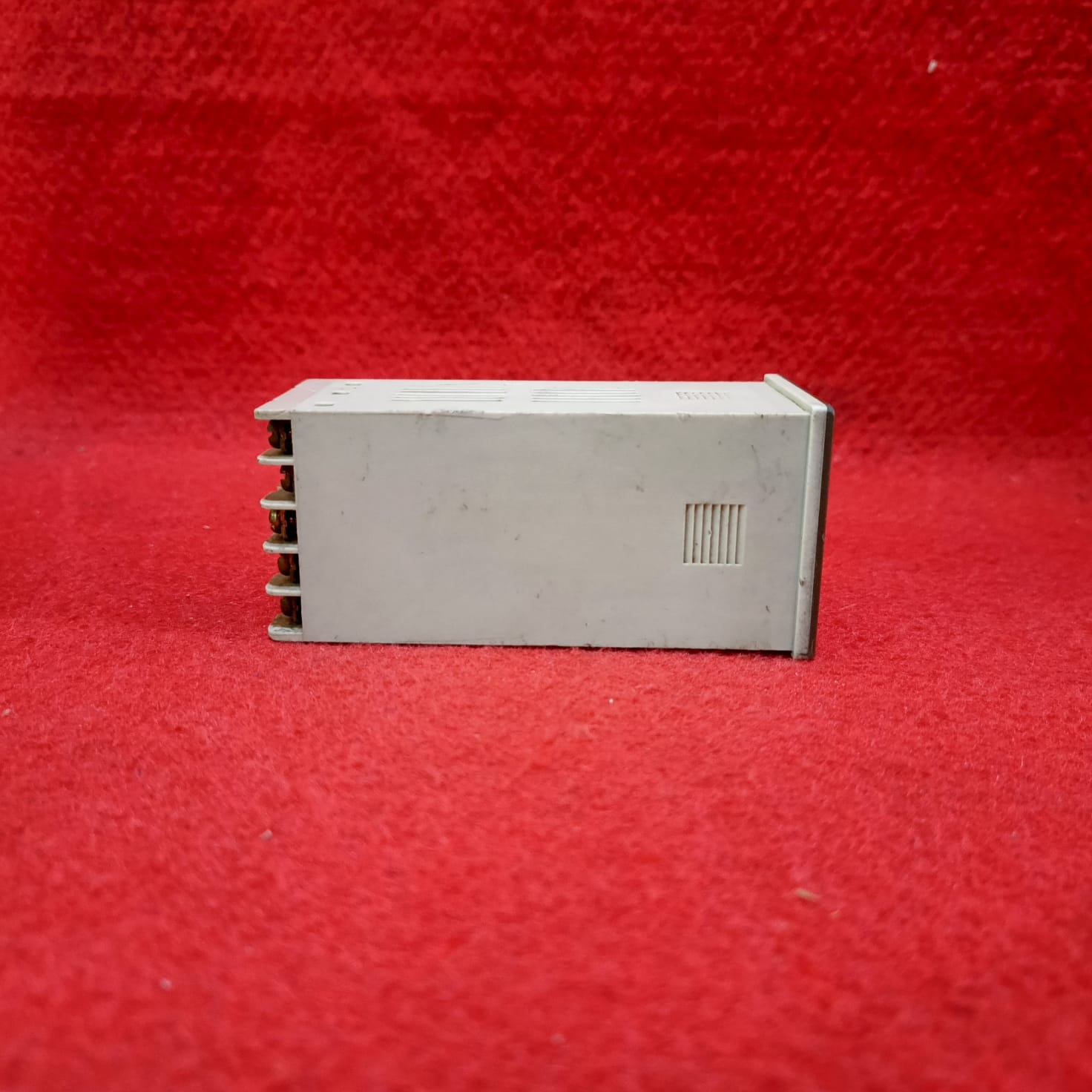

YAMATAKE SDC10 Digital Temperature Controller

The YAMATAKE SDC10 Digital Temperature Controller is a compact, high-precision PID temperature controller designed for industrial process control applications. Engineered for accurate temperature regulation and stable performance, the SDC10 supports a wide range of temperature sensors and control outputs, making it ideal for plastic machinery, packaging equipment, ovens, furnaces, textile machines, food processing equipment, and other industrial heating systems. Its advanced PID control with Auto-Tuning ensures fast response and excellent temperature stability.

Key Features

• Genuine YAMATAKE (Azbil) Digital Temperature Controller

• Model: SDC10

• Advanced PID and ON/OFF temperature control

• Auto-Tuning and Self-Tuning functions for optimized control

• Compact 48 × 48 mm panel-mount design

• High-accuracy digital display

• Multiple sensor input compatibility

• Reliable performance for continuous industrial operation

Technical Specifications

• Manufacturer: YAMATAKE (Azbil)

• Model: SDC10

• Product Type: Digital Temperature Controller

• Control Method: PID / ON-OFF Control

• Input Types: Thermocouple (TC), RTD (Pt100), DC Voltage, DC Current

• Output Options: Relay, Voltage Pulse (SSR Drive), or Current Output (depends on model number)

• Supply Voltage: 100–240 VAC, 50/60 Hz

• Power Consumption: 7 VA Max.

• Panel Size: 48 × 48 mm (DIN 1/16)

• Operating Temperature: 0 to 50°C

• Humidity: 10–90% RH (non-condensing)

Applications

• Plastic Injection & Extrusion Machines

• Industrial Ovens and Furnaces

• Textile Machinery

• Food Processing Equipment

• Packaging Machines

• Laboratory Equipment

• Heat Treatment Systems

• General Industrial Process Control
